產品概述
MX6012-IS雙頻無線接入點，是一款支持IEEE 802.11a/b/g/n/ac/ax協議的雙頻無線AP，最高速率1773.5Mbps，優化使用頻寬和上網速度；能夠支持AP/Client多種工作模式，滿足不同的應用需求。靈活適用于不同的網絡接入方案，支持無線定位功能，滿足智慧無線覆蓋需求；支持kvr無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。本產品能夠?yàn)榭蛻籼峁┓€(wěn)定無線信號覆蓋，確保客戶享受穩定、高質量、便捷的無線網絡服務。
MX6012-IS提供3個千兆電口、2個千兆SFP、2.4G/5.8G雙頻合路天線接口，支持接入多種類型天線，滿足不同場景覆蓋。產品硬件設計滿足本安要求，高可靠的電源多級保護及端口保護設計，可以保證MX6012-IS無線產品長期工作在惡劣的工控環境下。
產品特征
- 產品采用IPQ6000+QCA8075+QCN5052+QCN5022方案構架
- 2.4GHz速率573.5Mbps，5.8GHz速率1200Mbps
- 支持接入點，客戶端，WDS接入點，WDS客戶端模式
- 支持2×2MIMO，雙頻合路MMCX接口
- 支持動態頻率選擇（DFS）
- 支持Uart/485/UWB模塊/物聯網模塊
- 支持無線探針，配合定位引擎可實現人員定位功能
- 支持1024QAM調制，數據傳輸效率相比802.11ac提升25%
- DDR3 4Gb，Nor Flash 128Mb，1Gb的NAND閃存
- 支持3x千兆電口，2x千兆光口
- 專業的本安電源設計，具有欠壓保護、輸出短路、過流、過壓保護，輸入防反接功能
- WIFI單機功耗≤13W，擴展5G互聯網功耗≤15W；
- DC或3位5.08mm間距接線端子供電，寬壓9~30V
- 滿足本質安全特性
- 支持AC 統一管理（硬件單獨購買）
產品規格
| 主芯片 | IPQ6010+QCA8075+QCN5052+QCN5022 |
| 外置FEM | QPF4588A+QPF4288A |
| 內存 | 1GB DDR3+ 16MB Nor Flash+ 128MB Nand Flash |
| 頻率范圍 | 2.4G：2412MHz~2472MHz；5.8G：5180MHz~5320MHz、5745MHz～5825MHz |
| 無線速率 | 1773.5Mbps |
| 數據調制方式 | 11n：64-QAM MCS7 |
| 11ac：256-QAM MCS9 | |
| 11ax：1024-QAM MCS11 | |
| 發射功率 | 2.4G（11ax）： HT40：24dBm@ MCS0 |
| 5.8G（11ax）：HT80：24dBm@ MCS0 | |
| 接收靈敏度 | 11ax： |
| HE20 MCS0 <-95dBm / MCS11 <-62dBm | |
| HE40 MCS0 <-89dBm / MCS11 <-60dBm | |
| HE80 MCS0 <-86dBm / MCS11 <-56dBm | |
| 網口 | 3x1Gbps 電口+2x1Gbps SFP |
| 供電電壓 | 9V~36V（5.5mm*2.1/5.08 間距 2pin） |
| 整機功耗 | WiFi功耗≤15W，擴展5G互聯網功耗≤18W |
| 天線接口 | 2xMMCX |
| UART | Uart 接口（2.54mm 間距 4pin |
| RS-485 | RS-485 接口（3.8mm 間距 3pin） |
| LTE接口 | 4G/5G LTE Slot Mini-Pcie（USB3.0 總線） |
| SIM卡槽 | Micro SIM |
| 指示燈 | 狀態指示燈 |
| 按鍵 | Reset鍵 |
| 尺寸 | 160（長） x 136（寬）x 21.5（高）mm, 偏差±0.5mm |
| 顏色 | 啞光黑 |
| 工作/存儲溫度 | 溫度：-20℃～+70℃（工作），-40℃ ～+90℃（儲存） |
| 工作/存儲溫度 | 濕度（非凝結）：10％～95％（工作），5％～90％（儲存） |
| 認證標準 | RoHS/REACH |
射頻參數
| 頻率 | 速率 | 發射功率（單通道） | 發射功率（雙通道） | 公差 | 接收靈敏度 | 公差 |
| 2.4GHz 802.11b | 1Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| 2Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB | |
| 5.5Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| 11Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 | MCS0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 | MCS0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| 2.4GHz 802.11ax HE20 | MCS0 | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS8 | 19dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS9 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -69dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -66dBm | ±2dB | |
| 2.4GHz 802.11ax HE40 | MCS0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS8 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS9 | 19dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -66dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11ax HET20 | MCS0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -77dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -71dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -68dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -65dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -62dBm | ±2dB | |
| 5.8GHz 802.11ax HE40 | MCS0 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -72dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -69dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -66dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -63dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -60dBm | ±2dB | |
| 5.8GHz 802.11ax HE80 | MCS0 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -56dBm | ±2dB |

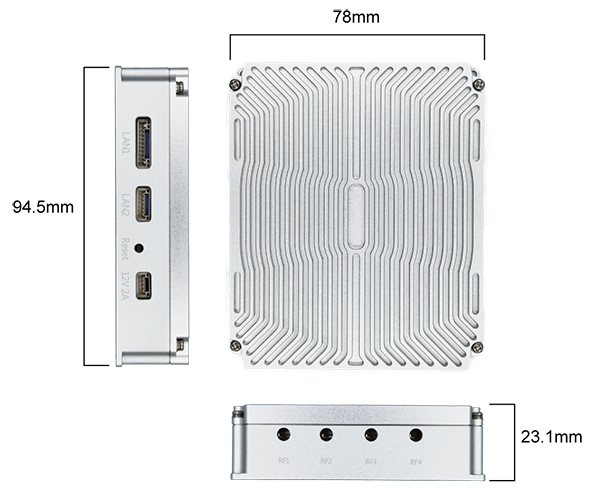

接口展示
產品概述
MX-6012A是一個完整的802.11 g/gn/an/ac/ax Wi-Fi6解決方案，針對低功耗、低成本和高度集成的AP進行了優化。
該產品基于單芯片IPQ6000，集成了四核ARM Cortex-A53 1.2GHz CPU和帶有外部FEM的雙頻802.11 g/gn/an/ac/ax 2x2 MIMO MAC/BB/無線電。它支持802.11 ax操作，對于80MHz，最高可達1700 Mbps。
產品特征
- 高通Atheros IPQ6000四核ARM 64位A53 1.2GHz處理器
- 2x2 2.4GHz無線電，物理數據速率高達573Mbps
- 2x2 5.8GHz無線電，物理數據速率高達1201Mbps
- 支持動態頻率選擇（DFS）
- DDR3內存高達3 GB
- 最高256MB（32MB）的SPI或閃存
- 高達256MB的NAND閃存
- 支持Uart/GPIO/LED
- WAN接口：1*100Mbps（GH1.25mm 6P帶鎖扣）
- LAN接口：1*100/1000Mbps（GH1.25mm 8P帶鎖扣）
- DC供電：DC12/2A（GH1.25mm 4P帶鎖扣）
推薦運行額定值
| 要素 | 最小值 | 標準值 | 最大值 | 單位 |
| 工作溫度 | -20 | 25 | 70 | ℃ |
| VDD 12V | 11.80 | 12.00 | 12.20 | V |
| VDD IO | 1.6 | 1.8 or 3.3 | 3.6 | V |
直流特性
| 要素 | 最小值 | 標準值 | 最大值 | 單位 |
| 備用物品 | - | 15 | - | mA |
| Tx電流（4通道） | - | 950 | - | mA |
| 接收電流（4通道） | - | 250 | - | mA |
環境條件
| 溫度 | 工作溫度： -20℃ ~ 55℃ 存儲溫度：-40℃ ~ 85℃ |
| 濕度 | 工作濕度：5% ~ 95% 存儲濕度：5% ~ 95% |
| VESD | 人體模型：-2000V ~ +2000V 機器模式：-200V ~ +200V |
射頻參數（2GHz）
| 速率 | 發射功率 （單通道） | 發射功率 （雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 2GHz 802.11b | 1Mbps | 20dBm | 23dBm | ±2dB | -101dBm | ±2dB |
| 2Mbps | 20dBm | 23dBm | ±2dB | -99dBm | ±2dB | |
| 5.5Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB | |
| 11Mbps | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| 2GHz 802.11g | 6Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB |
| 9Mbps | 20dBm | 23dBm | ±2dB | -95dBm | ±2dB | |
| 12Mbps | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| 2GHz 802.11n HT20 | MCS 0 | 20dBm | 23dBm | ±2dB | -96dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -80dBm | ±2dB | |
| 2GHz 802.11n HT40 | MCS 0 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -77dBm | ±2dB |
| 速率 | 發射功率 （單通道） | 發射功率 （雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 2GHz 802.11ax HE20 | MCS 0 | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -95dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -78dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 10 | 16dBm | 19dBm | ±2dB | -69dBm | ±2dB | |
| MCS 11 | 15dBm | 18dBm | ±2dB | -66dBm | ±2dB | |
| 2GHz 802.11ax HE40 | MCS 0 | 20dBm | 23dBm | ±2dB | -95dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -93dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -75dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS 10 | 16dBm | 19dBm | ±2dB | -66dBm | ±2dB | |
| MCS 11 | 15dBm | 18dBm | ±2dB | -64dBm | ±2dB |
射頻參數（5GHz）
| 速率 | 發射功率 （單通道） | 發射功率 （雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 5GHz 802.11a | 6Mbps | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| 9Mbps | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| 12Mbps | 20dBm | 23dBm | ±2dB | -89dBm | ±2dB | |
| 18Mbps | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| 24Mbps | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| 36Mbps | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| 48Mbps | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| 54Mbps | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| 5GHz 802.11n/ac VHT20 | MCS 0 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -89dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -77dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| 5GHz 802.11n/ac VHT40 | MCS 0 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -82dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -73dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -70dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -67dBm | ±2dB | |
| 5GHz 802.11ac VHT80 | MCS 0 | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -73dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -70dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -67dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -64dBm | ±2dB |
| 速率 | 發射功率 （單通道） | 發射功率 （雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 5GHz 802.11ax HET20 | MCS 0 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -89dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -74dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -71dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -68dBm | ±2dB | |
| MCS 10 | 16dBm | 19dBm | ±2dB | -65dBm | ±2dB | |
| MCS 11 | 15dBm | 18dBm | ±2dB | -62dBm | ±2dB | |
| 5GHz 802.11ax HE40 | MCS 0 | 20dBm | 23dBm | ±2dB | -89dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -72dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -66dBm | ±2dB | |
| MCS 10 | 16dBm | 19dBm | ±2dB | -63dBm | ±2dB | |
| MCS 11 | 15dBm | 18dBm | ±2dB | -60dBm | ±2dB | |
| 5GHz 802.11ax HE80 | MCS 0 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB |
| MCS 1 | 20dBm | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS 2 | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS 3 | 20dBm | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS 4 | 20dBm | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS 5 | 20dBm | 23dBm | ±2dB | -74dBm | ±2dB | |
| MCS 6 | 20dBm | 23dBm | ±2dB | -71dBm | ±2dB | |
| MCS 7 | 19dBm | 22dBm | ±2dB | -68dBm | ±2dB | |
| MCS 8 | 18dBm | 21dBm | ±2dB | -65dBm | ±2dB | |
| MCS 9 | 18dBm | 21dBm | ±2dB | -62dBm | ±2dB | |
| MCS 10 | 16dBm | 19dBm | ±2dB | -59dBm | ±2dB | |
| MCS 11 | 15dBm | 18dBm | ±2dB | -56dBm | ±2dB |
產品尺寸
產品規格
| 芯片 | Qualcomm IPQ6010 | ||
| 存儲 | 512MB DDR4 32MB NOR Flash 256MB NAND Flash | ||
| 標準協議 | IEEE 802.11 a, b, g, n, ac, ax | ||
| 空間流 | 2.4GHz: 2x2:2 | 5GHz: 2x2:2 | |
| 速率 | 802.11ax (2.4GHz): 573.5Mbps | 802.11ax (5GHz): 1200Mbps | |
| 帶寬 | 2.4GHz: 20/40 MHz | 5GHz: 20/40/80 MHz | |
| 頻率范圍與工作信道 | 臺灣 | 美國 | |
| 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz;12 channels 5.745 – 5.825 GHz; 5 channels | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels 5.745 – 5.825 GHz; 5 channels | ||
| 歐洲聯盟 | 中國 | ||
| 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz; 11 channels | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels | ||
| 日本 | 印度 | ||
| 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels 5.745 – 5.865 GHz; 7 channels | ||
| *工作信道取決于配置的監管域。 | |||
| 調制方式 | DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | ||
| 最大輸出功率 | 2.4GHz | 5GHz | |
| 23dBm（單鏈路） | 23dBm（單鏈路） | ||
| *最大功率設置會因信道與各個國家/地區的規定而異。 | |||
| 靈敏度 | -82dBm (Min.) | ||
| 2.4GHz | 5GHz | ||
| HT20: -82dBm/HT40: -79dBm | VHT20: -82dBm/ VHT40: -79dBm/ VHT80: -76dBm | ||
| 接口 | 2xRJ45 支持10/100/1000Mbps/2.5Gbps 1xUSB 3.0 端口（軟件存儲和控制臺開關） 1xReset button / 1 x LED 1xPCI Express 3.0, M.2 E-key | ||
| 環境規格 | 存儲 | 操作 | |
| 溫度： -45 – 70 ℃ 濕度：5 – 95% | 溫度：-45 – 55 ℃ 濕度：5 – 95%（非冷凝） | ||
| 指示燈 | 白色（彩色） 穩定：已連接到互聯網。 閃爍：無法連接到互聯網。 | ||
| 電源 | 功耗 | 電源輸入 | |
| ≤ 18W | DC12V 1.5A | ||
| 藍牙 | 版本 | 頻率 | |
| 5.0 | 2400 – 2480MHz | ||
| 合規標準 | IEC/EN 62368-1 EN55032 & EN55024 WEEE & RoHS IEEE 標準： IEEE 802.11a/b/g/n/ac/ax IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards 多媒體: Wi-Fi 多媒體 (WMM) 安全： 開放系統 802.1x WPA-PSK/WPA2-PSK WPA-Enterprise/WPA2-Enterprise/WPA3 可擴展身份驗證協議 (EAP) 類型： EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) | ||
產品概述
MX-AB160-H1是一個完整的小尺寸802.11a/b/g/n/ac/ax Wi-Fi6解決方案，針對低功耗、低成本和高度集成的AP進行了優化。該模塊基于集成四核ARM Cortex-A7 710MHzCPU和帶有外部FEM的雙頻802.11a/b/g/n/ac/ax 2x2 MIMO MAC/BB/無線電。它支持802.11 ax操作，對于80MHz，最高可達1700 Mbps。
產品特征
-
高通Atheros IPQ6000四核ARM 64位A53 1.8GHz處理器
-
物理數據速率高達573Mbps（2.4GHz）&1201Mbps（5GHz）
-
支持動態頻率選擇（DFS）
-
DDR3內存高達4GB
-
SPI NOR閃存最高可達256Mb（32MB）
-
高達256MB的NAND閃存
-
1*2.5G base-T，1*2.5G SGMII
-
高速迷你PCIe v2.0支持
-
USB 2.0/3.0和MicroSD支持
-
Uart/GPIO/LED支持
-
采用401-55101-51高速連接器
-
射頻輸出2.4G&5.8G 4路MMCX連接器
推薦運行額定值
| 要素 | 最小值 | 標準值 | 最大值 | 單位 |
| 工作溫度 | -20 | 25 | 70 | Deg.c |
| VDD 12V | 9 | 12 | 15 | V |
| VDD IO | 1.6 | 1.8 or 3.3 | 3.6 | V |
直流特性
| 要素 | 最小值 | 標準值 | 最大值 | 單位 |
| 備用物品 | - | 15 | - | mA |
| Tx電流（4通道） | - | 950 | 1200 | mA |
| 接收電流（4通道） | - | 250 | 380 | mA |
環境條件
| 溫度 | 工作溫度： -20 deg.C ~ 70 deg.C |
| 存儲溫度：-40 deg.C ~ 90 deg.C | |
| 濕度 | 工作濕度：5% ~ 95% |
| 存儲濕度：5% ~ 95% | |
| VESD | 人體模型：-2000V ~ +2000V |
| 機器模式：-200V ~ +200V |
射頻參數（2.4GHz）
| 速率 | 發射功率 （單通道） | 發射功率 （雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 2.4GHz 802.11b | 1Mbps | 20dBm | 23dBm | ±2dB | -101dBm | ±2dB |
| 2Mbps | 20dBm | 23dBm | ±2dB | -99dBm | ±2dB | |
| 5.5Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB | |
| 11Mbps | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g | 6Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB |
| 9Mbps | 20dBm | 23dBm | ±2dB | -95dBm | ±2dB | |
| 12Mbps | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 | MCS0 | 20dBm | 23dBm | ±2dB | -96dBm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS5 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS6 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS7 | 19dBm | 22dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 | MCS0 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS4 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS5 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 19dBm | 22dBm | ±2dB | -77dBm | ±2dB |
產品概述
MX-AB080-H1 V2雙頻無線接入點，是一款支持802.11a/b/g/n/ac 協議的雙頻無線AP，最高速率1167Mbps，最高接入數量可達512個，優化使用頻寬和上網速度。能夠支持AP/Client多種工作模式，滿足不同的應用需求，靈活適用于不同的網絡接入方案。支持無線定位功能，滿足管廊、工廠、園區等智慧無線覆蓋需求。支持無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。
產品預留了PCIE接口，可以融合物聯網模組。多種供電方式，DC 24V供電（3pin 5.08端子）或POE 48V供電；LAN口可支持電口或光口接入。
產品規格
| 硬件規格 | 尺寸 | 120x115mm |
| 供電方式 | 48V POE+ | |
| 最大功耗(W) | 12W | |
| 平均功耗(W) | 9W | |
| 處理器 | IPQ4028 | |
| 內存 | 256MB DDR3L，32MB Flash | |
| 擴展接口 | Mini PCIe | |
| 網絡接口 | 2*10/100/1000Mbps，兼容SFP | |
| LED | 6xLED | |
| 最大發射功率 | 2.4G：25dBm；5G：24dBm | |
| 工作溫度 | -20℃~70℃ | |
| 存儲溫度 | -40℃~90℃ | |
| 工作濕度 | 5%~95%RH 不凝結 | |
| 軟件規格 | 工作協議 | 802.11 a/b/g/n/ac |
| 頻率范圍 | 2.4G： 2412~2472MHz（中國 ） 2412~2462MHz（美國 ） 2412~2472MHz（大部分國家） 5G： 5180~5320MHz、5745~5825MHz（中國 ） 5180~5320MHz、5500~5720MHz、5745~5825MHz（美國 ） 5160~5340MHz、5480~5720MHz、5745~5865MHz（印度） 5160~5340MHz、5480~5720MHz、5745~5825MHz（阿聯酋） 5745~5805MHz（印度尼西亞） *以上頻率需特定版本支持 | |
| 工作模式 | 接入點，客戶端，WDS接入點，WDS客戶端 | |
| 安全配置 | WPA2-PSK，隱藏SSID，IP/MAC過濾 | |
| 網絡模式 | 網橋/路由 | |
| 配置管理 | 支持網頁配置、支持AC遠程管理、支持SNMP管理 | |
| 其他 | 定時重啟，VLAN支持，QoS，Watchdog |
射頻參數
| 發射功率 | 接收靈敏度 | |||||
|
| 速率 | 功率 | 公差 | 速率 | 靈敏度 | 公差 |
| 11b/g/n | 1 Mbps | 22dBm | +/- 2dBm | 1 Mbps | -93dBm | +/- 2dBm |
| 11 Mbps | 22dBm | +/- 2dBm | 11 Mbps | -86dBm | +/- 2dBm | |
| 6 Mbps | 22dBm | +/- 2dBm | 6 Mbps | -88dBm | +/- 2dBm | |
| 54 Mbps | 19dBm | +/- 2dBm | 54 Mbps | -70dBm | +/- 2dBm | |
| HT20 MCS0(合路) | 25dBm | +/- 2dBm | HT20 MCS0 | -88dBm | +/- 2dBm | |
| HT20 MCS7(合路) | 21dBm | +/- 2dBm | HT20 MCS7 | -68dBm | +/- 2dBm | |
| HT40 MCS0(合路) | 25dBm | +/- 2dBm | HT40 MCS0 | -86dBm | +/- 2dBm | |
| HT40 MCS7(合路) | 21dBm | +/- 2dBm | HT40 MCS7 | -65dBm | +/- 2dBm | |
| 11a/n | 6 Mbps | 21dBm | +/- 2dBm | 6 Mbps | -88dBm | +/- 2dBm |
| 54 Mbps | 18dBm | +/- 2dBm | 54 Mbps | -70dBm | +/- 2dBm | |
| HT20 MCS0(合路) | 24dBm | +/- 2dBm | HT20 MCS0 | -88dBm | +/- 2dBm | |
| HT20 MCS7(合路) | 20dBm | +/- 2dBm | HT20 MCS7 | -67dBm | +/- 2dBm | |
| HT40 MCS0(合路) | 24dBm | +/- 2dBm | HT40 MCS0 | -85dBm | +/- 2dBm | |
| HT40 MCS7(合路) | 20dBm | +/- 2dBm | HT40 MCS7 | -65dBm | +/- 2dBm | |
| 11ac | VHT20 MCS0(合路) | 24dBm | +/- 2dBm | VHT20 MCS0 | -88dBm | +/- 2dBm |
| VHT20 MCS8(合路) | 19dBm | +/- 2dBm | VHT20 MCS8 | -64dBm | +/- 2dBm | |
| VHT40 MCS0(合路) | 24dBm | +/- 2dBm | VHT40 MCS0 | -84dBm | +/- 2dBm | |
| VHT40 MCS9(合路) | 18dBm | +/- 2dBm | VHT40 MCS9 | -61dBm | +/- 2dBm | |
| VHT80 MCS0(合路) | 24dBm | +/- 2dBm | VHT80 MCS0 | -82dBm | +/- 2dBm | |
| VHT80 MCS9(合路) | 18dBm | +/- 2dBm | VHT80 MCS9 | -57dBm | +/- 2dBm | |
*上表中合路功率為測試的單路功率+3dB
產品概述
MX6022 E雙頻無線接入點，是一款支持IEEE 802.11a/b/g/n/ac/ax協議的雙頻無線AP，最高速率1773.5Mbps，優化使用頻寬和上網速度；能夠支持AP/Client多種工作模式，滿足不同的應用需求。靈活適用于不同的網絡接入方案，支持無線定位功能，滿足智慧無線覆蓋需求；支持kvr無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。本產品能夠?yàn)榭蛻籼峁┓€(wěn)定無線信號覆蓋，確保客戶享受穩定、高質量、便捷的無線網絡服務。
產品特征
- 產品采用IPQ6010+QCA8081+QCN5052+QCN5022方案構架
- 2.4GHz速率573.5Mbps，5.8GHz速率1200Mbps
- 支持接入點，客戶端，WDS接入點，WDS客戶端模式
- 支持2×2MIMO，雙頻合路MMCX接口
- 支持動態頻率選擇（DFS）
- 支持無線探針，配合定位引擎可實現人員定位功能
- 支持1024QAM調制，數據傳輸效率相比802.11ac提升25%
- 支持UART/UWB模塊/物聯網模塊/無線模塊/4G、5G模塊
- DDR3 4Gb，Nor Flash 128Mb，1Gb的NAND閃存
- 2.5G以太網WAN口，2.5G以太網LAN口
- WIFI單機功耗≤18W，擴展5G互聯網功耗≤25W；
- 支持AC 統一管理（硬件單獨購買）
射頻參數
| 速率 | 發射功率（單通道） | 發射功率（雙通道） | 公差 | 接收靈敏度 | 公差 | |
| 2.4GHz 802.11b | 1Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| 2Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB | |
| 5.5Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| 11Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 | MCS 0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 | MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| 2.4GHz 802.11ax HE20 | MCS 0 | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS 8 | 19dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS 9 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -69dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -66dBm | ±2dB | |
| 2.4GHz 802.11ax HE40 | MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS 8 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS 9 | 19dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -66dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11a | 6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| 5.8GHz 802.11n/ac VHT20 | MCS 0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -75dBm | ±2dB | |
| 5.8GHz 802.11n/ac VHT40 | MCS 0 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -82dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -73dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -70dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -67dBm | ±2dB | |
| 5.8GHz 802.11ac VHT80 | MCS 0 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -73dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -70dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -67dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11ax HET20 | MCS 0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -77dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -74dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -71dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -68dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -65dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -62dBm | ±2dB | |
| 5.8GHz 802.11ax HE40 | MCS 0 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -72dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -69dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -66dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -63dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -60dBm | ±2dB | |
| 5.8GHz 802.11ax HE80 | MCS 0 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB |
| MCS 1 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS 2 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS 3 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS 4 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS 5 | 21dBm | 24dBm | ±2dB | -74dBm | ±2dB | |
| MCS 6 | 21dBm | 24dBm | ±2dB | -71dBm | ±2dB | |
| MCS 7 | 20dBm | 23dBm | ±2dB | -68dBm | ±2dB | |
| MCS 8 | 19dBm | 22dBm | ±2dB | -65dBm | ±2dB | |
| MCS 9 | 19dBm | 22dBm | ±2dB | -62dBm | ±2dB | |
| MCS 10 | 17dBm | 20dBm | ±2dB | -59dBm | ±2dB | |
| MCS 11 | 16dBm | 19dBm | ±2dB | -56dBm | ±2dB |
環境條件
| 溫度 | 工作溫度： -20℃ ~ 70℃ 存儲溫度：-40℃ ~ 90℃ |
| 濕度 | 工作濕度：5% ~ 95% 存儲濕度：5% ~ 95% |
產品尺寸
