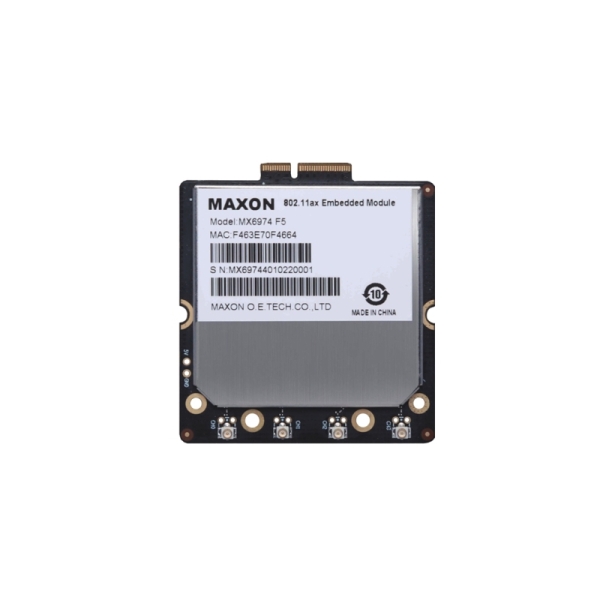

MX-6974 F5 高通QCN9074/4x4?MIMO/5GHz/PCI Express3.0/802.11ax/WIFI6模塊
產品概述
碼訊MX6974 F5是一款配有PCI Express 3.0接口及M.2 E-key的嵌入式WiFi6無線網卡。該無線網卡采用Qualcomm? 802.11ax Wi-Fi 6技術，支持5180-5850GHz頻段，可執行AP及STA功能，同時具備4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。
產品規格
|
產品類型 |
WiFi6無線模塊 |
|
芯片 |
QCN9074 |
|
IEEE 標準 |
IEEE 802.11ax |
|
接口 |
PCI Express 3.0，M.2 E-key |
|
工作電壓 |
3.3V/5V |
|
頻率范圍 |
5G：5.180GHz~5.850GHz |
|
調制技術 |
802.11n：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ac：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ax：OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM， 256-QAM，1024-QAM，4096-QAM） |
|
輸出功率（單通道） |
802.11ax：Max. 21dBm |
|
功耗 |
≦15W |
|
接收靈敏度 |
11ax： HE20 MCS0 <-89dBm / MCS11 <-64dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-58dBm |
|
天線接口 |
4 x U. FL |
|
工作環境 |
溫度：-20°C to 70°C 濕度：95% （無冷凝） |
|
存儲環境 |
溫度：-40°C to 90°C 濕度：90% （無冷凝） |
|
認證 |
RoHS/REACH |
|
重量 |
20 克 |
|
尺寸（W*H*D) |
60 x 57 x 4.2 mm （偏差±0.1mm） |
射頻參數
| 速率 | 發射功率（單通道） | 公差 | 接收靈敏度 | 公差 | |
| 802.11a | 6Mbps | 21dBm | ±2dB | -91dBm | ±2dB |
| 9Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 12Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 18Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 24Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 36Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 48Mbps | 17dBm | ±2dB | --- | ±2dB | |
| 54Mbps | 17dBm | ±2dB | -74dBm | ±2dB | |
| 802.11n/ac VHT20 | MCS0 | 21dBm | ±2dB | -91dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -67dBm | ±2dB | |
| 802.11n/ac VHT40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -71dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -65dBm | ±2dB | |
| 802.11ac VHT80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -61dBm | ±2dB | |
| 802.11ac VHT160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE20 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -64dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -60dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -58dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| MCS10 | 14dBm | ±2dB | --- | ±2dB | |
| MCS11 | 14dBm | ±2dB | --- | ±2dB | |
| MCS12 | 7dBm | ±2dB | --- | ±2dB | |
| MCS13 | 7dBm | ±2dB | --- | ±2dB |

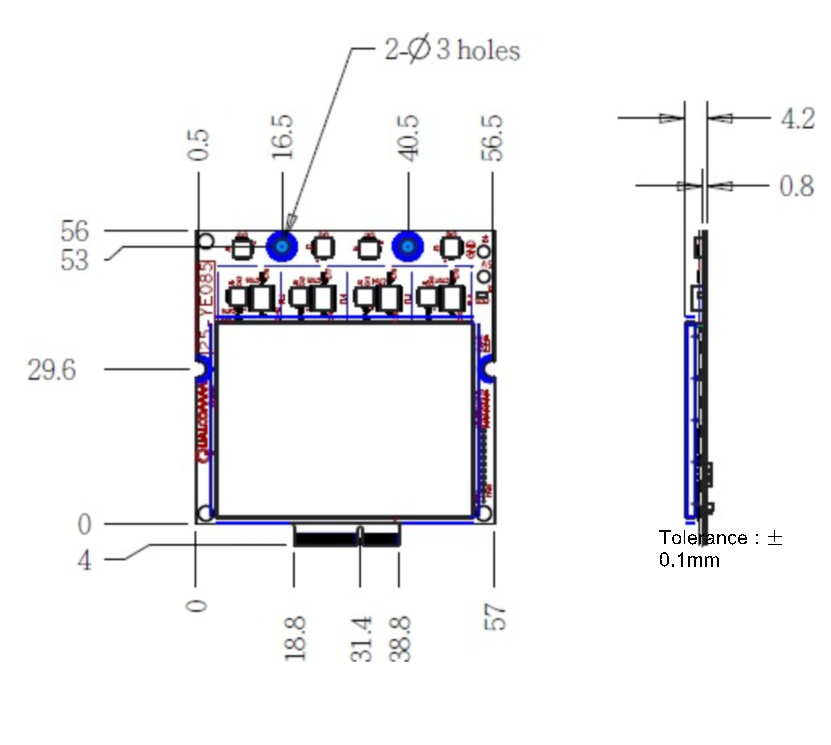

模組尺寸和推薦PCB方式
